03 / THERMAL COMPONENTS
Aluminium heat sink profiles
Browse radial and plate-fin aluminium heat sink profiles in Sunbond’s product range. Share a section drawing, length and mounting details for a project-specific review.
PRODUCT FORMS
- Radial profiles
- Plate-fin profiles
- Profile inquiries with machining requirements
Specify the job.
Then select the product.
Select a profile against your assembly envelope and cooling requirements. A product image cannot establish thermal performance; provide the operating conditions and any required validation.
- Profile geometry
- Section drawing, fin layout, overall envelope and cut length.
- Material & finish
- Requested aluminium alloy and surface treatment, if specified.
- Assembly details
- Mounting holes, interfaces, flatness requirements and other critical dimensions.
- Operating conditions
- Heat load, airflow, ambient conditions and the thermal acceptance target, if applicable.

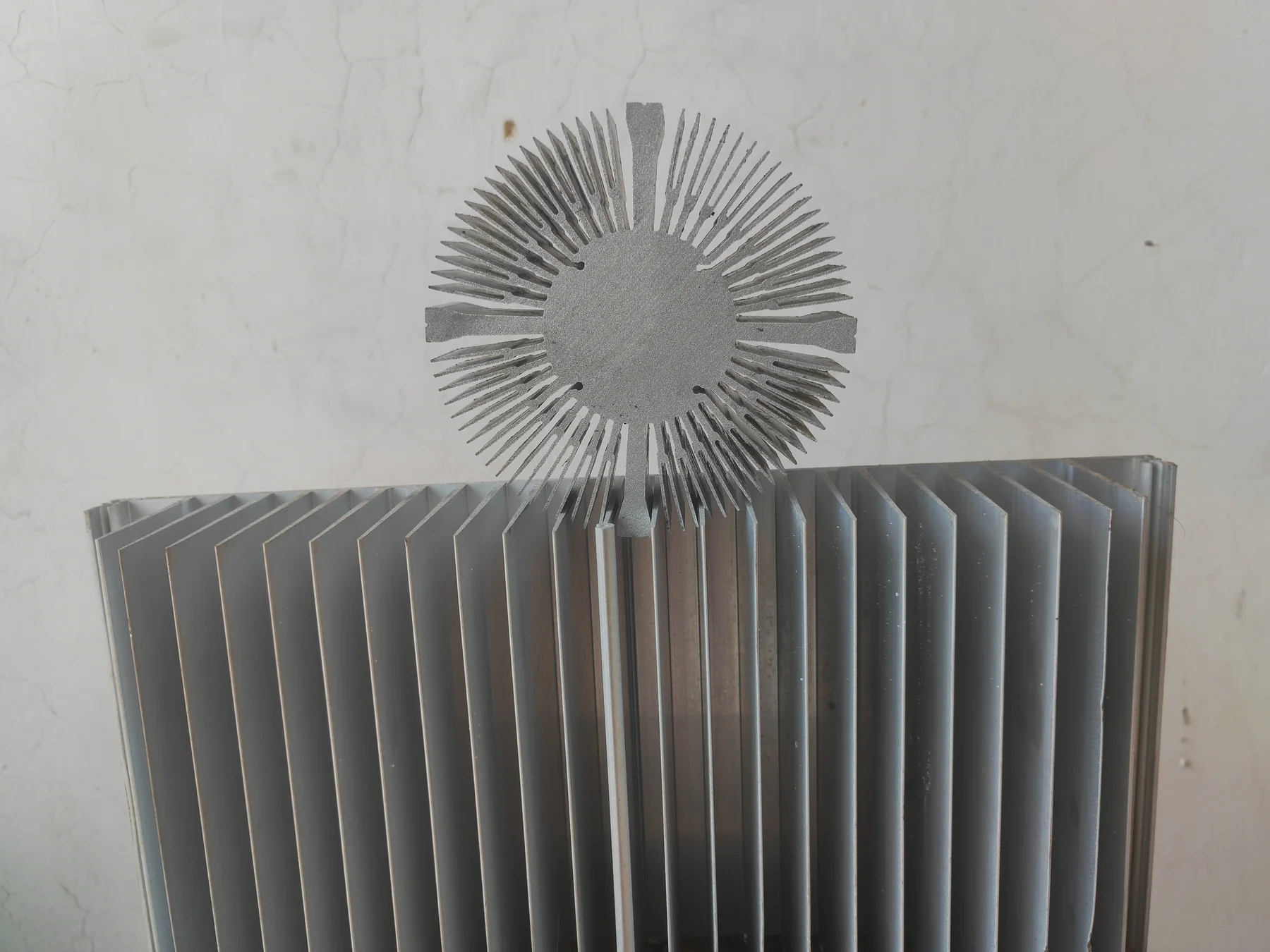

FROM THE PRODUCT GALLERY
A closer look.
Q / A
Questions before you order
Can I inquire about a profile from a drawing?
Send a section drawing, length, quantity and any machining requirements. Profile feasibility and any tooling requirements are reviewed before quotation.
Is thermal performance specified by the image?
No. Thermal performance depends on the full assembly and operating conditions. Include your design target and validation requirements in the inquiry.
NEXT STEP
Bring us your specification.
Send the drawing, material and quantity. We will review the details with you.
